Humidity Chambers are used in performing “Stability Studies”. Stability studies provide an evidence on the changes in the quality of product with Time, under the influence of varied environmental factors: Temperature, Humidity.
Evaluation of product (API or Formulations) under recommended storage conditions, ( with appropriate tolerances) that test its “Thermal Stability” & if applicable, its sensitivity to moisture.
In simple words, Stability can be expressed as: “The capacity of a drug to remain within specifications established, to assure its Integrity, Strength, Quality & Purity”
Specially designed chambers for low Humidity conditions, such as
• 25°C & 40%RH
• 40°C & 25%RH
• 30°C & 35%RH
| TECHNICAL SPECIFICATION | |||
| Temperature Range | 20°C to 60°C | ||
| Humidity Range | 40% RH to 85% RH | ||
| Accuracy | +0.2°C | +2.0% RH | |
| Uniformity | +1.0°C | +3.0% RH | |
| Test suitable for: | 25°C & 60% RH 30°C & 65% RH |
40°C & 75% RH, 30°C & 75% RH |
|

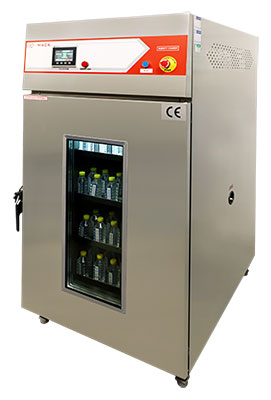

Features of Humidity Chamber
ConstructionChamber Interior is fabricated of stainless steel with dull finish & exterior is of stainless steel / G.I. Powder coated. The inner working chamber is water & vapour tight high-grade stainless steel. All seams are arc-welded & passivated for strength & durability
Full View Glass Door
A multi pane single door with viewing glass is provided to the chamber to see the samples without any disturbance. It is sealed around the entire perimeter by silicon sponge rubber gasket.
Leveling Legs
Bullet feet ensure easy mobility during installation & cleaning. Bullet feet are specially designed for long life under heavy load with built in screwing adjustment
Trays
Heavy duty solid stainless steel duly electro polished wire mesh type trays are provided which are easy to clean, time & efforts saving , also adjustable for convenience.
21 CFR PART-11 Compliance
Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition. Standard Features:
- CE Approved
- PLC Control
- Ethernet Connectivity
- 21 CFR Software
- Colour Touch Screen HMI
- Master & Stand by sensor
- PLC based Safety Cut-Off
- Email Alert
- Stand By Refrigeration System
- Stand By Steam Generator System
- Scanner
- GSM Technology
- Hooter System
- Extra Tray
- Password protected or Biometric door access system
- 21 CFR PART 11 COMPLIANCE SOFTWARE : DAAS - V 4.0
- SCANNER 4 + 4 (TEMP & RH) IMPORTED SENSORS
- STAND BY REFRIGERATION SYSTEM & STAND BY HUMIDITY SYSTEM
- EXTRA TRAY
- HOOTER SYSTEM ( Security Alarm System)
- GSM TECHNOLOGY ( SMS Alert System)
- PASSWORD PROTECTED DOOR ACCESS SYSTEM
Stand By Steam Generator System
Stand By Refrigeration System
Control System
Standby Humidity System for Stand-alone Chamber
Hooter System
| Size | ||||||||
| Model | MK*-10HC | MK*-20HC | MK*-40HC | MK*-60HC | MK*-80HCH | MK*-100HC | ||
| Capacity | 100 Ltrs | 200 Ltrs | 400 Ltrs | 600 Ltrs | 800 Ltrs | 1000 Ltrs | ||
| Interior Dimension | ||||||||
| Width in mm | 500 | 600 | 700 | 700 | 700 | 800 | ||
| Depth in mm | 400 | 400 | 600 | 800 | 800 | 800 | ||
| Height in mm | 600 | 850 | 950 | 1100 | 1450 | 1600 | ||
| Exterior Dimension | ||||||||
| Width in mm | 660 | 760 | 860 | 860 | 860 | 960 | ||
| Depth in mm | 1080 | 1080 | 1230 | 1430 | 1430 | 1430 | ||
| Height in mm | 1250 | 1500 | 1600 | 1750 | 2100 | 2250 | ||
| Trays | ||||||
| No of Trays | 2 | 2 | 3 | 3 | 4 | 4 |
| Type | Perforated | |||||
| Tray spacing | Every 1/2" Adjustable | |||||
| Power Supply | ||||||||
| Power Supply | Single Phase, 230V 50Hz | |||||||
| Warranty | 12 Months | |||||||
Other Sizes also available as on requirement.
| MATERIAL OF CONSCTUCTION (MOC) | |||||||
| INSIDE MATERIAL | OUTSIDE MATERIAL | INSIDE FINISH | OUTSIDE FINISH | ||||
| MK – 1 | SS 304 | G I Powder Coated | Matt Finish | G I Powder Coated | |||
| MK – 2 | SS 304 | SS 304 | Matt Finish | Matt Finish | |||
| MK – 3 | SS 316 | SS 304 | Matt Finish | Matt Finish | |||
Note:
- MK* :- MK1 / MK2 / MK3
- MK**-S :- Split type Condensing Unit
- We can provide panel type for standalone chamber other sizes are also available as on requirement
